T-bolt clamp
Price: |
0.1~1.0 USD |
Payment Terms: |
T/T,L/C,D/P |
Place of Origin: |
Anhui, China (Mainland) |
Product Detail
Model No.:
KTBLS308
Packing:
10pieces/bag 50bags/carton
size:
71-78mm
Material:
Stainless Steel
standard:
SAE type TB
Production Capacity:
50000 Piece/Pieces per Day
Delivery Date:
15 days
Car Make:
All
Structure:
T Clamp
usage:
diameter 71-78mm pipe clamp
American T clamps Factory in China
The Supplier of one of Fortune top 500
Machine, Technology, Quality from USA

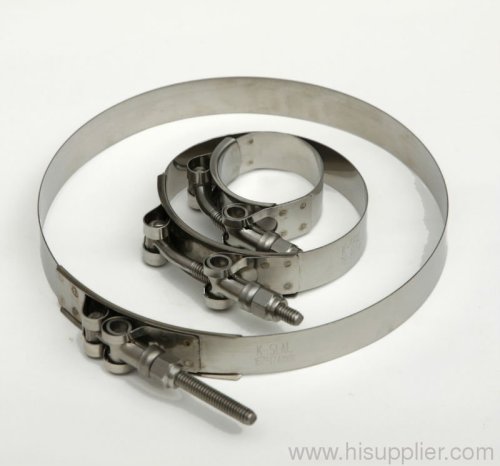

SAE Type SLTB Stainless Steel Spring Loaded T Bolt Clamps KTBLS308
K-Seal spring-loaded clamps are designed to compensate for the expansion and contraction of hose caused by temperature and/or hose cold flow. Typical installations include silicone hoses on charge air cooling/air-to-air, after cooling systems and primary engine coolant systems. KTBLS series clamps are 300 Series Stainless Steel construction with plated carbon steel bolts, springs and selflocking nuts.
NOTE: Coil springs should not be compressed to solid at installation. Make sure the nut is positioned approximately one to two turns from solid. This allows the clamp to expand and contract.
Double-Plated Nut, Bolt & Spring | Inches | Millimeters |
Nominal | Min. | Max. | Nominal | Min. | Max. |
KTBLS132 | 1.25 | 1.12 | 1.32 | 32 | 28 | 34 |
KTBLS145 | 1.40 | 1.26 | 1.45 | 36 | 32 | 37 |
KTBLS169 | 1.60 | 1.50 | 1.69 | 41 | 38 | 43 |
KTBLS212 | 2.00 | 1.82 | 2.12 | 51 | 46 | 54 |
KTBLS236 | 2.25 | 2.06 | 2.36 | 57 | 52 | 60 |
KTBLS261 | 2.50 | 2.31 | 2.61 | 64 | 59 | 66 |
KTBLS286 | 2.75 | 2.56 | 2.86 | 70 | 65 | 73 |
KTBLS308 | 3.00 | 2.78 | 3.08 | 76 | 71 | 78 |
KTBLS333 | 3.25 | 3.03 | 3.33 | 83 | 77 | 85 |
KTBLS358 | 3.50 | 3.28 | 3.58 | 89 | 83 | 91 |
KTBLS383 | 3.75 | 3.53 | 3.83 | 95 | 90 | 97 |
KTBLS408 | 4.00 | 3.78 | 4.08 | 102 | 96 | 104 |
KTBLS433 | 4.25 | 4.03 | 4.33 | 108 | 102 | 110 |
KTBLS458 | 4.50 | 4.28 | 4.58 | 114 | 109 | 116 |
